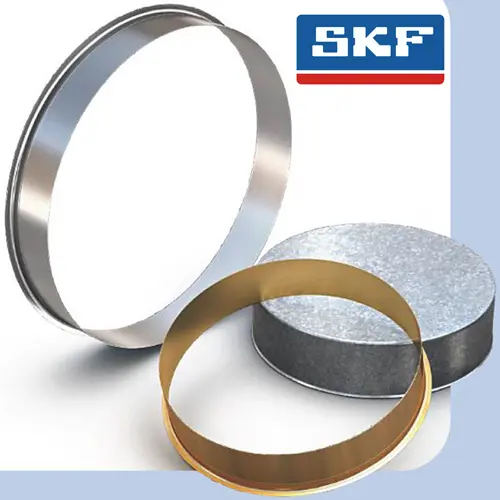

SKF SPEEDI SLEEVE DIA 105 STAINLESS CR-99412 SLEEVEAS 105
Rp1,100,200
- Harga sudah termasuk PPN
- Untuk pembeli Quantity, bisa hubungi Kami
Alasan berbelanja di TechTama
- Foto hanya contoh, ukuran seperti yang tertera
- Jam Operasional 08.00 - 17.00 (Sabtu 08.00-15.00)
- Orderan Max Jam 15.00, akan diproses dihari yang sama
Deskripsi
Ulasan (0)
Deskripsi
| Berat | 2000 gram |
|---|---|
| Kategori | SKF Oil Seals |
| Tag | shaft repair sleeve, skf, speedi sleeve |
SKF Speedi-Sleeve Type 99412
Dimensions
| d1 | min. 104.7 mm
|
Shaft diameter range |
|---|---|---|
| d1 |
max. 104.9 mm
|
Shaft diameter range |
| d1 |
104.78 mm
|
Nominal bore diameter |
|---|---|---|
| D |
113.54 mm
|
Nominal outside diameter |
|
± 1.57 mm
|
Tolerance outside diameter D | |
| b |
25.4 mm
|
Nominal width |
|
± 0.8 mm
|
Tolerance width b | |
| b1 |
20.65 mm
|
Nominal width of plain sleeve (up to flange groove) |
|
± 0.8 mm
|
Tolerance width b1 | |
| B |
max. 34.93 mm
|
Installation distance |
| r |
max. 3.18 mm
|
Bushing radius (chamfer) between bore and side face |
| t |
0.25 mm
|
Nominal thickness |
